“The Science and Physics That Support the Beauty of Chance in Mokume‑Gane”
Introduction | Is the Pattern Sensitivity or Science?

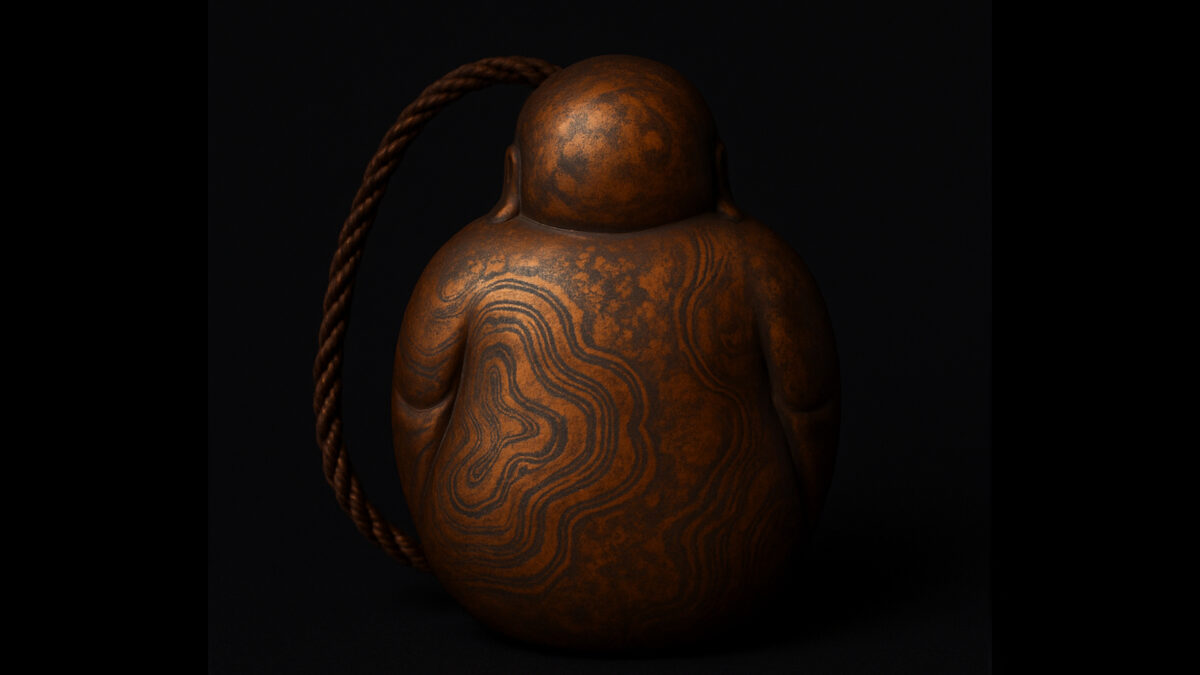

Japanese traditional metalworking mokume‑gane is a technique in which different metals are layered, forge‑welded, carved, engraved, and polished to bring forth beautiful patterns reminiscent of tree rings or ripples. These patterns are often described as “naturally appearing” or “accidental,” but from the perspective of modern science, they result from the combined action of thermodynamics, material mechanics, chemical reactions, and interfacial phenomena.
In this article, I aim to clarify why mokume‑gane patterns emerge, based on scientific evidence, tracing the roles of layering, bonding, deformation, oxidation, and other processes.
Chapter 1 | Because Materials Differ, Patterns Emerge: The Basic Physical Properties of Dissimilar Metals
The metals commonly used in mokume‑gane include nonferrous metals and precious metal alloys such as:
| Metal | Main Color / Appearance | Key Physical Properties | Typical Use in Patterns |
|---|---|---|---|
| Copper (Cu) | Reddish‑brown | Soft, highly ductile | Base metal, bulk of layering |
| Silver (Ag) | Bright silver | High electrical conductivity, relatively low tendency to oxidize | Pattern layer, surface contrast |
| Shakudō (Copper + small % Gold) | Black‑purple to dark brown (with ni‑iro) | Develops deep coloration by oxidation / surface treatment | Decorative / pattern layers |
| Shibuichi (Copper + Silver ~25%) | Gray‑purple to bluish‑grey (with ni‑iro) | Intermediate properties; color shifts with treatment | Transitional pattern layers or mid‑layers |
| Brass (Cu + Zn) | Golden yellow | Good machinability; strong contrast potential | Accentuating pattern contrast |
Because these metals differ in thermal expansion coefficient, hardness, oxidation behavior, conductivity, etc., physical differences arise during bonding, heating, cooling, and deformation—and these differences often manifest visually as patterns.
1.1 Interfacial Phenomena Among Dissimilar Metals
When dissimilar metals are stacked and heat‑bonded (diffusion bonding), the following interfacial phenomena occur:
- Mutual diffusion of elements (e.g. Cu, Ag, Zn) → forming diffusion zones
- Formation of intermetallic compounds (e.g. AgCu, CuZn) → sometimes hard or brittle phases locally, if heating is excessive
- Stress concentrations around microscopic surface irregularities at the interface → which can become seeds for pattern features when carving or metal removal occurs
Through these processes, what was initially a uniform plane becomes a layer that contains heterogeneous information, which becomes the seed of pattern.
Chapter 2 | Mechanisms of Pattern Formation: The “Memory of Structure” Revealed by Carving
2.1 Visualizing Layered Structure by Carving
When a layered metal block is carved, the depth and angle of carving produce different visible patterns. For example:
| Carving Direction / Angle | Tendencies of Pattern | Notes / Examples |
|---|---|---|
| Perpendicular (≈ 90°) | Ring‑like / layered ring patterns, ripple patterns | Vertical cuts exposing full thickness of layers |
| Oblique (≈ 30°–60°) | Flow lines, spirals | Angled carving produces more continuous, flowing effects |
| Curved surfaces / convex removal | Radiating or cloud‑like patterns | Curved geometries produce focal effects |
| Spot or dot carving | Speckles, pointillist, stone‑texture effects | Localized removal yielding small dots or pits |
Thus, pattern emerges as a sectional view of a three‑dimensional structure. In some sense, this resembles methods of structural analysis in crystallography or cross‑section microscopy.
2.2 Layer Waves and Stress Effects (Including Uncertain Elements)
The metals, once bonded, forged, twisted or rolled, often have slight deformations, curvature, or plastic distortion in their layers. These minute curvatures or local distortions can become starting points for ripple or spiral patterns when carved.
However, to what extent stress distribution influences pattern is not yet quantitatively well studied; there remain many uncertain variables.
Chapter 3 | Color Formation Mechanisms: Surface Chemistry and Optical Interference
3.1 Formation of Color Layers via Ni‑Iro (Boiling‑Color) Treatment
By ni‑iro treatment, oxidized or compound films (such as CuO, Ag₂S, etc.) form on the surface:
- These layers are tens to hundreds of nanometers thick
- The structure, density, and crystallinity of these films differ depending on metal and treatment conditions
- Reflection, thin‑film interference of light, etc., produce unique color tones
Hence, even within the same metal layer, variation in oxidation rate, reactivity of the ni‑iro solution, heating duration etc. produce subtle differences in hue; mismatch between pattern region and color region leads to expressive “offsets” in appearance.
3.2 Relationships Among Interference Color, Scattering, and Base Material Color
How the pattern appears depends on:
- Interference color: determined by film thickness vs light wavelength (yields blue, violet, gold tones)
- Scattered color / scattering: caused by micro‑surface roughness, creating diffuse reflection or glare
- Base material color: inherent color of copper, silver, oxidized metal etc.
The overlap of these effects causes phenomena like pattern appearing to “move” or shift depending on angle, lighting, etc.
Chapter 4 | Modern Scientific Methods for Pattern Structure Visualization and Analysis
4.1 Optical Microscopy, SEM Sectional Observation
Today, cross‑sections of mokume‑gane samples are visible under:
- Optical Microscope (OM)
- Scanning Electron Microscope (SEM)
- Scanning Probe Microscopes (e.g. AFM)
SEM images in particular often show diffusion zones between metals, oxidation boundaries, fine pores. (For example, see Yamamoto et al., Journal of Surface Engineering Japan, 2016). However, quantitative correlation between these microstructures and aesthetic impression remains unestablished and uncertain.
4.2 Elemental Analysis: EDX, XPS
To probe the relationship between pattern color / hue and composition, these analytical techniques are used:
- EDX (Energy‑Dispersive X‑ray analysis): displays elemental proportions in various pattern regions
- XPS (X‑ray Photoelectron Spectroscopy): gives high‑precision data on oxidation states and surface composition
Using these, tendencies such as diffusion of Cu, Ag, Zn in pattern regions, variations in oxidation level, segregation of silver, etc., are beginning to be quantified.
Chapter 5 | Can the Beauty of Chance Be Fully Explained by Science?
In conclusion, pattern formation in mokume‑gane is determined by the interaction of multiple scientific/engineering elements:
- Material physical properties
- Deformation and processing stress
- Oxidation reactions (chemistry)
- Optical interference (optics)
- Carving angle, depth, tool mechanics (engineering)
But at the same time, the final form always depends strongly on non‑formalizable, experiential or intuitive elements:
- The idiosyncrasy of the carver’s touch
- Variations in how heat is applied or tool pressure
- Timing decisions made by feel
Thus, while one may understand the science behind mokume‑gane patterns, exact reproducibility remains elusive.
Conclusion | The Pattern Exists on the Border Between Technique and Thought
The patterns in mokume‑gane follow physical laws—but they are more than that. Science reveals mechanism, but humans give the patterns meaning.
Therefore, mokume‑gane patterns are:
- A scientific phenomenon
- An art piece
- A philosophical question
I hope the insights introduced here help to deepen understanding of the complex science that underlies the patterns.
References
(As in original Japanese): Asahi Shimbun; Mainichi Shimbun; Jewelry Seasons; The Transmission of the Techniques of Mokume Gane; Metal Jewelry Craft; works by Ian Ferguson, Steve Midgett, etc.
